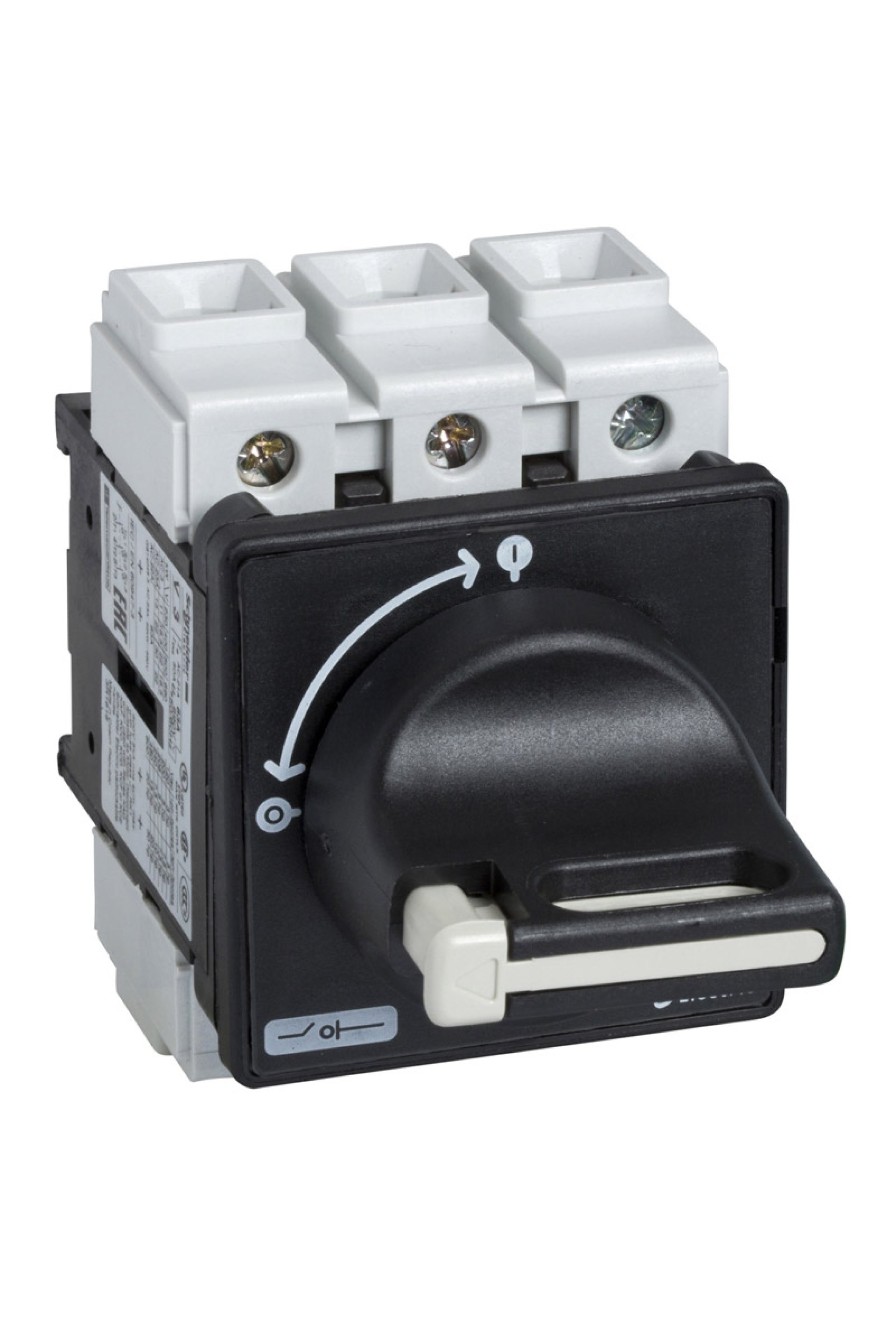

Schneider VBF0 VARIO 5.5kW Komple Şalter

Schneider Komple Şalter Ürün Özellikleri Range : TeSys Product Name : TeSys VARIO Device Short Name : VBF Device Application : Koruyucu bakım Product Type : Bağlantı kesici Tamamlayıcı Özellikler Device Composition : Kol Mounting Support : Kol: kapı Mounting Method : 4 vidayla için kol Performance Level : Yüksek performans Number of Poles : 3P Contact Type and Composition : 3 NA [Ue] IEC Rated Operational Voltage : 690 V AC 50/60 Hz IEC Rated Operational Power in W : 11 kW -de 500 V (AC-23A) [Ie] Rated Operational Current : 14,5 A AC-23 Ue: 400 V [Ith] Conventional Free Air Thermal Current : 25 A [Ithe] Conventional Enclosed Thermal Current : 20 A Making Capacity ( I Rms) : 250 A -de 400 V AC-21A 250 A -de 400 V AC-22A 250 A -de 400 V AC-23A Breaking Capacity : 200 A -de 400 V (AC-21A) 200 A -de 400 V (AC-22A) 200 A -de 400 V (AC-23A) Rated Conditional Short Circuit Current : 10 kA -de 400 V - ilgili sigorta 25 A aM 10 kA -de 400 V - ilgili sigorta 25 A gG [Icm] Rated Short Circuit Making Capacity : 1 kA -de 400 V Itepe'de [Icw] Rated Short Time Withstand Current : 300 A -de 400 V 1 s [Uimp] Rated Impulse Withstand Voltage : 8 kV Suitability for Isolation : Evet Network Type : DC AC Intermittent Duty Class : 30 Control Type : Döner kol Rotary Handle Mounting Style : Doğrudan Handle Color : Siyah Handle Front Plate Color : Siyah Rotary Handle Padlocking : 1 ila 3 asmalı kilit 4…8 mm Marking : 0 - 1 Mechanical Durability : 100000 cycles Electrical Durability : 100000 cycles AC-21 30000 cycles DC-1...5 IEC Terminal Connection : Güç devresi: vida kelepçesi terminalleri kablo 10 mm² - kablo sertligi: katı Güç devresi: vida kelepçesi terminalleri kablo 6 mm² - kablo sertligi: esnek - Kablo uçlu Tightening Torque : Güç devresi: 2,1 N.m - üzerinde vida kelepçesi terminalleri Base Dimension : 60 x 60 mm Height : 74 mm Width : 60 mm Product Weight : 0,25 kg Ortam Koşulları Standards : IEC 60947-3 Product Certifications : CSA UL CCC GL UKCA Degree of Protection : IP20 'e uygunIEC 60529 IP65 Protective Treatment : TC Mechanical Robustness : Titreşimler 10...150 Hz (1 gn) 'e uygunIEC 60068-2-6 Şoklar 11 ms (30 Gn) 'e uygunIEC 60068-2-27 Ambient Air Temperature for Operation : -20…50 °C Fire Resistance : 960 °C 'e uygunIEC 60695-2-1 Compatibility Code : Ana yük ayırıcı
